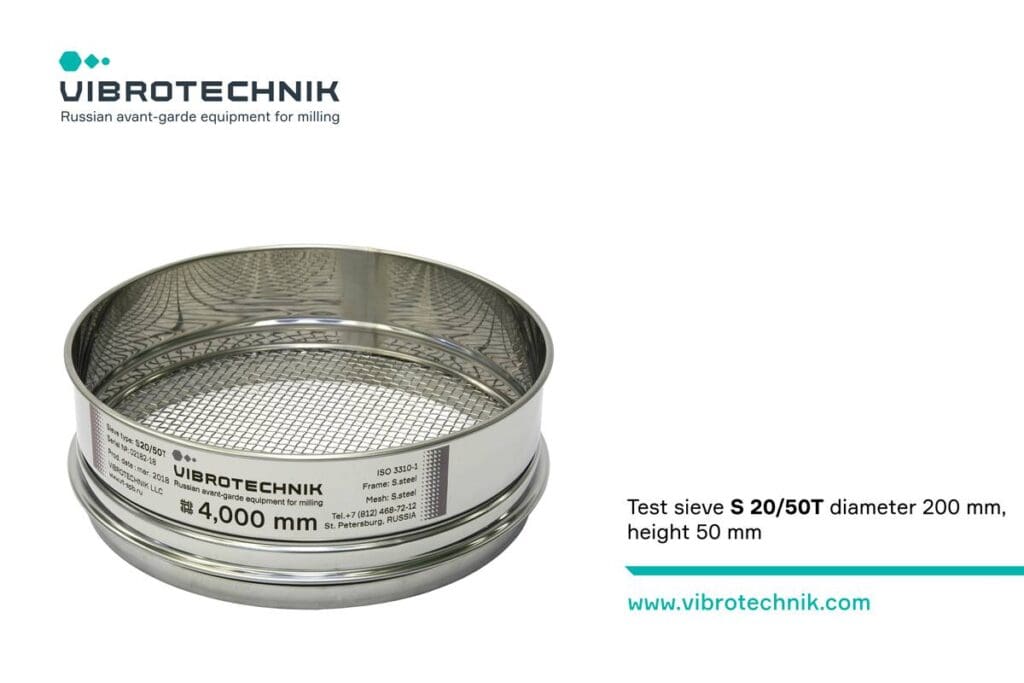

Test sieves correspond to the accuracy of mesh sizes and perforated plate holes to international standards ISO 3310-1, ISO 3310-2 and provide high reproducibility of sieving.
Characteristics
Inner frame diameter 200 mm
Overall dimensions: Ø 212 mm, Height 70 mm
Mesh size: 0,02 – 10,0 mm
Size of apertures in perforated plate:
round holes —1,0 — 125,0 mm
square holes —4,0 – 125,0 mm
Maximum weight of sieve with mesh 0,5 kg
Maximum sample weight for sieve with mesh 0,2 kg
Maximum sample weight for sieve with perforated plate 0,5 kg
