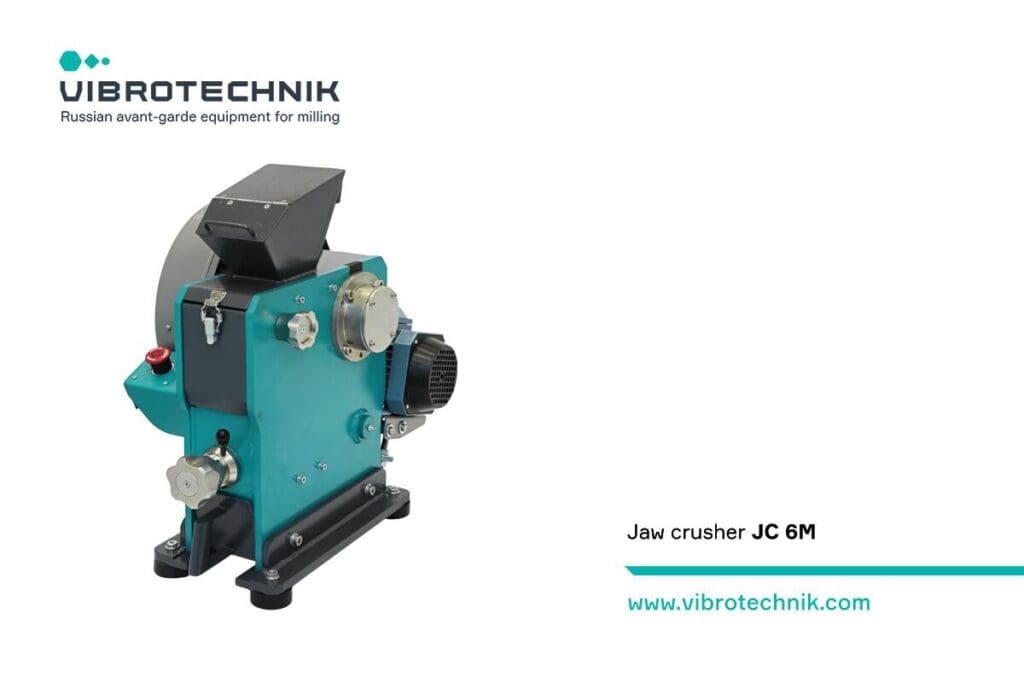

Jaw crusher JC 6M is designed for crushing small samples of material in laboratories with low and medium workloads. The small size, low weight and electric motor power make it possible to use the JC 6M in mobile laboratories, in low-capacity process installations and in geological surveying.
Characteristics JC 6М
Loading door dimensions – 60х100 (mm)
Maximum initial material grain size – 50 (mm)
Discharge slot adjustment range – 2-25 (mm)
Maximum output – 200 (kg/hour)
Collecting container / tank volume – 2 / 10 (L)
Electric motor power – 1,1 (kW)
50 Hz supply voltage – 380 (V)
Overall dimensions (Length x Width x Height / with stand) – 645х340х610 / 1100 (mm)
Weight / with stand – 135 / 165 (kg)
Jaw material – iron / steel / wolfram carbide – GJN-HV600 (XCr14) / UNS J91109 / WC
