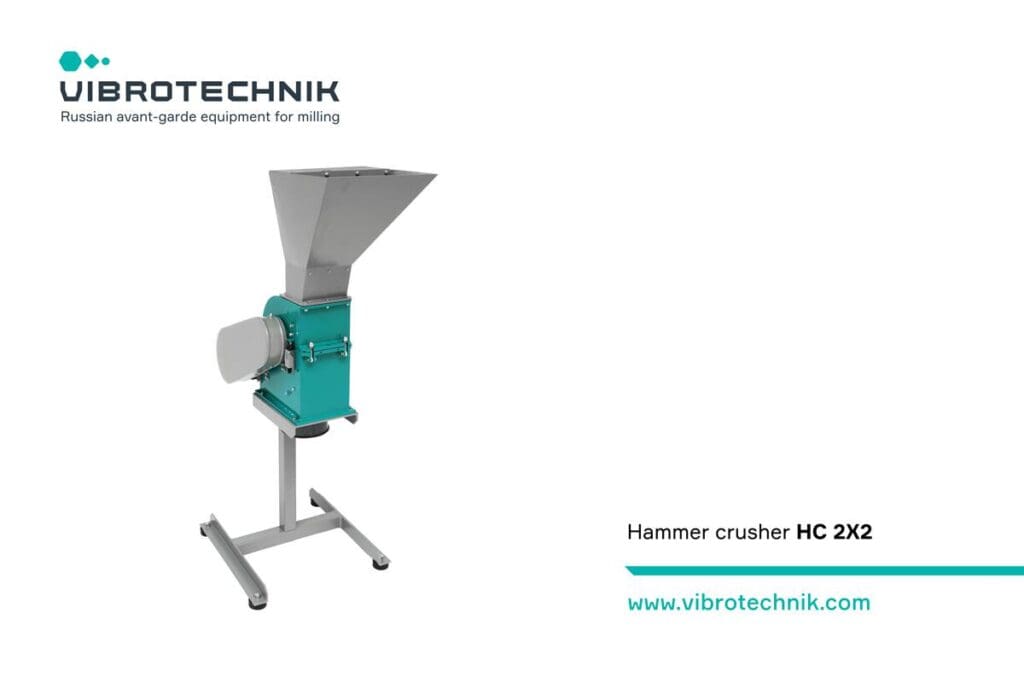

The Hammer crusher HC 2×2 is laboratory-class equipment designed to crush small batches of material with output up to 100 kg/hour.
Characteristics HC 2×2
Loading door dimensions – 200 x 330 (mm)
Rotor dimensions (Diameter x Length) – 250 x 150 (mm)
Maximum initial material size – 20 (mm)
Initial material particle size – 0.5–10 (mm)
Maximum output 100 (kg/hour)
Hardness of material crushed- Up to 4 Mohs units
Rotor rpm 1,000–3,000
Electric motor power 1,5–3 (kW)
50 Hz supply voltage – 380 (V)
Overall dimensions (Length x Width x Height) – 885 x 550 x 1,410 (mm)
Weight – 120 (kg)
Hammer material – tool steel AISI 1066
