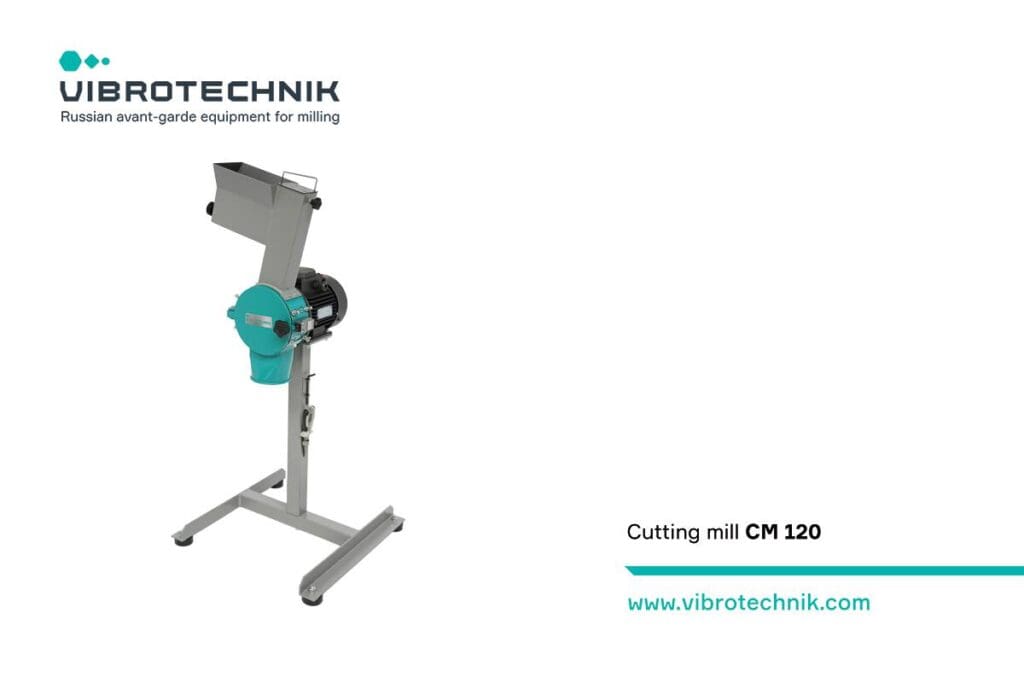

The CM 120 cutting mill is laboratory-class equipment designed for comminuting small batches of material with grain size up to 20 mm. The CM 120 effectively comminutes fiber materials by crushing them with a plunger through a vertical shaft.
Characteristics CM 120
Loading door dimensions 125х190/ 60х60 (mm)
Rotor dimensions (Length x Diameter) 80 х 120 (mm)
Maximum size of comminuted material 20 (mm)
Product particle size 90% 0,5 (mm)
Rotor rotational speed 1,500 (rpm)
Electric motor power 1,5/1,1 (kW)
50 Hz supply voltage 220/380 (V)
Overall dimensions (Length x Width x Height) 850х550х1185 (mm)
Weight 46 (kg)
Blade material – tool steel – AISI 01, DIN 150Cr14, AISI 5135
